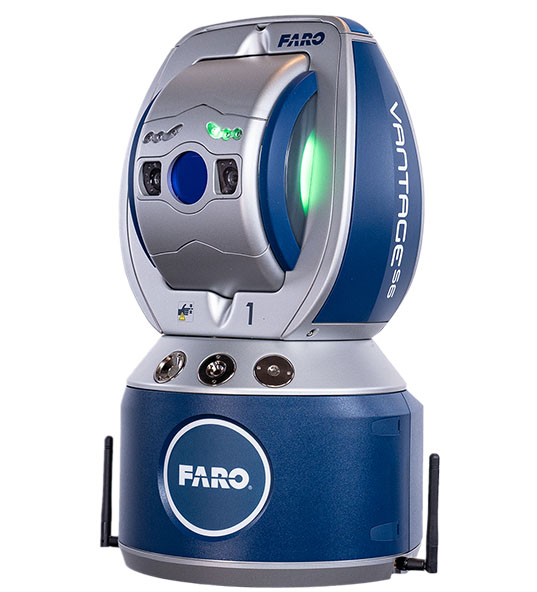

Faro Vantage S Laser Tracker
Faro Laser Tracker rental Vantages is the latest generation built for short to long-range measurement applications of up to 80 meters, maximizes productivity, and reduces inspection cycle times by 50% to 75%.
Everything is faster from warmup to WiFi to field compensation. Obtaining measurements has never been easier since the integration of ActiveSeek and RemoteControls features. The patent-pending ActiveSeek allows the tracker to quickly locate and lock onto a moving target, and then easily pick it up again after it has been behind an obstacle.
The RemoteControls feature enhances workflow by allowing you to use a tablet or smart phone to control live video feed and tracker movements.
It still comes with the same ruggedness and portability as the original Vantage, and remains highly accurate with little to no drift.
You can count on the Vantages to work in both darkness and bright sunlight as well.
Faro Laser Tracker Vantage S rental includes:
- Laser Tracker Head
- 1.5″ SMR
- Tooling Kit
At HTS Advanced Solutions you can create your rental package or rent what you need at your convenience. Packages come with lots of extra savings! To see all available accessories to complete your kit visit our accessories and software rental pages. Contact us to learn more!
Faro Vantage Laser Tracker
The FARO Vantage Laser Tracker is an extremely accurate, portable coordinate measuring machine that enables you to build products, optimize processes, and deliver solutions by measuring quickly, simply and precisely
Accuracy up to 0.015mm (0.0006 in.)
Faro Laser Tracker Vantage rental includes:
- Laser Tracker Head
- MCU
- 1.5″ SMR
- Tooling Kit
What is Included in your Tooling Kit Rental?
Quick overview of the Laser Tracker tooling kit that comes with your HTS Advanced Solution Laser Tracker Rental. These customized Tooling kits are also available for purchase. Please contact us for more information at info@hts-3d.com or call us at (833) 273 6833
Comparing FARO Vantage & FARO Vantage S Trackers
FARO VANTAGE |
FARO VANTAGE S |
|
|---|---|---|
| Size | Compact Size | Compact Size |
| Case | Rugged Carrying Case | Rugged Carrying Case |
| IP Rating | Water & Dust Resistant IP52 Rating |
Water & Dust Resistant IP52 Rating |
| Head Size | 224(W) x 416(H) mm 8.8(W) x 16.4(H) inches |
240(W) x 416(H) mm 9.4(W) x 16.4(H) inches |
| Head Weight | 12.6kg (28lbs) | 13.4kg (29.5lbs) |
| Controller Weight | 4.8kg (10.6lbs) | MCU integrated into the head |
| Controller Size | Without filters: 290(L) x 158(D) x 214(H) mm 11.4(L) x 6.2(D) x 8.4(H) inches |
MCU integrated into the head |
| With filters: 316(L) x 158(D) x 214(H) mm 12.4(L) x 6.2(D) x 8.4(H) inches |
MCU integrated into the head | |
| Target Lock | SmartFind | Active Seek – locate & lock on target allowing you to follow a moving target, even behind obstacles, and lock on the target again when it is stable |
| Camera | Multiview Cameras | Multiview Cameras – increased Field of View from 30 deg to 50 deg |
| ADM | TruADM | ADM – uses one laser to measure angle and distance and so removes errors and drift associated with two-beam tracker technology TruADM |
| Connectivity | Integrated WiFi | Remote Control Workflow – allows users to control functions such as live video feed and tracker movements with a mobile phone or tablet. |
| QuickComp | QuickComp | |
| TriMap Encoders | TriMap Encoders | |
| In-Line Optics | In-Line Optics |
